Home/Products/Pleated Cartridge Filters/PVDF Pleated Filter Cartridge

Pleated Cartridge Filters

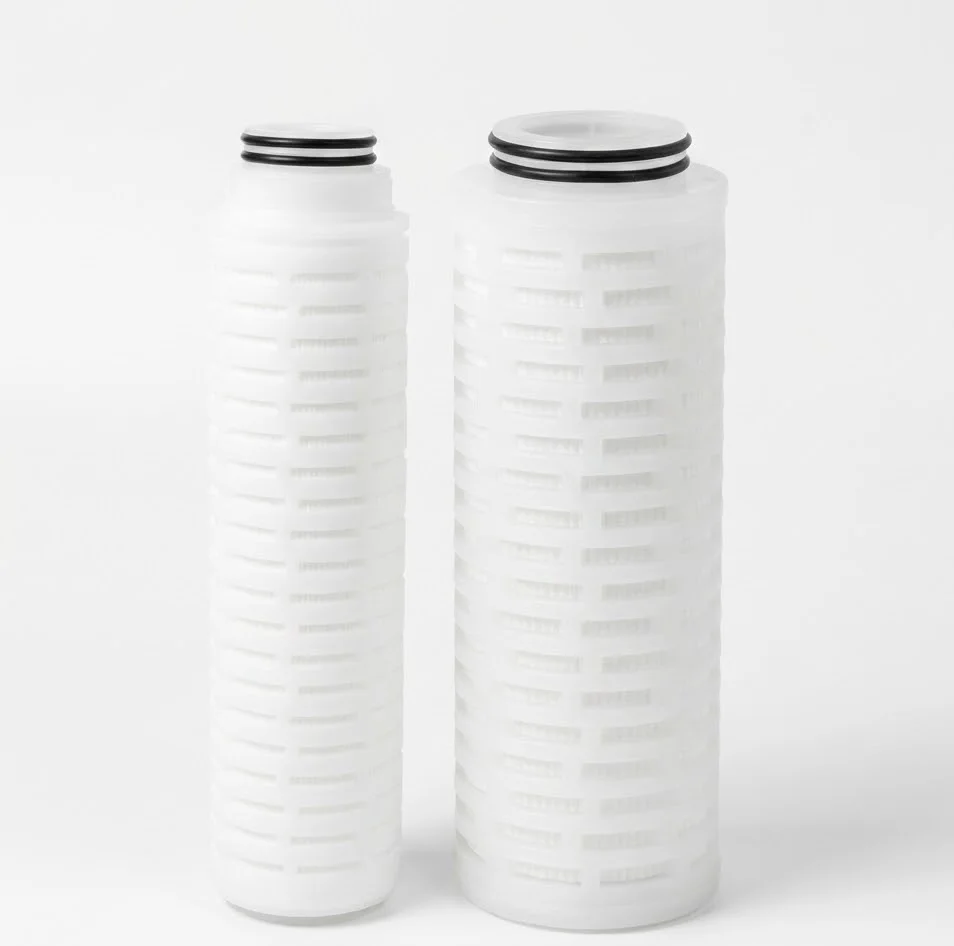

PVDF Pleated Filter Cartridge

Product ID: pvdf-pleated-filter-cartridge|PVDF

PVDF pleated filter element specially designed for harsh chemical environments and high cleanliness requirements. It has excellent chemical compatibility and can withstand a variety of acids, alkalis and solvents. The entire series is produced in Class 1,000 or 10,000 clean rooms to ensure no fiber release during use. All plastic components pass FDA 21 CFR and EU RoHS regulations. Offering various accuracies from 0.1μm to 1μm and length specifications up to 70 inches, it is an ideal choice for chemical processing, ultrapure water and pharmaceutical processing.

Excellent chemical compatibility with many acids, bases and solvents
Designed for harsh chemical and high-purity duties
Cleanroom-made (Class 1,000/10,000), no fiber release
Plastic components meet FDA 21 CFR and EU RoHS
Ratings from 0.1μm to 1μm
Lengths available up to 70 inches

Inquire About This Product ← Back to Category

Micron rating: 0.1 µm – 1.0 µm
Max operating temperature: 120 °C (upper temperature of the rated p
Effective filtration area: 標準型 ≥ 0.74 m² / 10"
Nominal lengths: 10" / 20" / 30" / 40" / 50" / 60" / 70"

Applications

Chemical process filtration

Ultrapure water filtration

Pharmaceutical processing

Acid, base & solvent filtration

High-purity applications

Specifications

Filter media / membrane: PVDF (polyvinylidene fluoride) microporous membrane, available hydrophilic or hydrophobic. Withstands a wide range of acids, alkalis and solvents for demanding chemical duty.
Support & drainage layers: PVDF support & drainage layers
Cage, core & end caps: PVDF cage, core and end caps, sealed by high-temperature thermal welding, metal-free
Seals / O-rings: Teflon-encapsulated FKM or silicone; all-PTFE gasket available for the DOE configuration
Micron rating: 0.1 µm / 0.22 µm / 0.45 µm / 0.65 µm / 1.0 µm
Removal efficiency: The high-porosity structure keeps retention efficiency stable in oxidising and highly corrosive service, with long life
Effective filtration area: 標準型 ≥ 0.74 m² / 10"
Nominal outer diameter: Ø68 mm
Nominal lengths: 10" / 20" / 30" / 40" / 50" / 60" / 70"
End cap / connection: DOE, 222/flat, 222/fin, 226/fin, 226/flat
Max operating temperature: 120 °C (upper temperature of the rated pressure data)
Max forward differential pressure: 5.2 bar @ 25 °C；1.9 bar @ 120 °C
Max reverse differential pressure: 3.0 bar @ 25 °C
Recommended change-out ΔP: Change out when ΔP reaches 3–5× the clean initial value or 0.24 MPa (2.4 bar / 35 psi), whichever comes first
Wetting & flushing: The hydrophilic configuration needs no pre-wetting and handles high-surface-tension reagents directly; the hydrophobic configuration requires IPA pre-wetting followed by purified-water displacement for aqueous service
Extractables & cleanliness: Semi-fluorinated construction with high-temperature thermal welding — no adhesives, no metal leaching; electronic-grade (E) cleanliness available
Packaging: Dry packed, or DI-water pre-wetted packed (W)
Regulatory & validation: Plastic components comply with FDA 21 CFR and RoHS; produced in a Class 1,000 / 10,000 cleanroom

Note: actual compatibility and service life depend on chemical concentration, temperature, flow, differential pressure, upstream contamination load and housing design. Validate under your real process conditions.

Part Number BuilderJY-GPA1

Example part number

-GPA1

JY: JIUNYUAN Technology
GPA1: PVDF membrane with PVDF cage and end caps, high-temperature thermally welded and metal-free
68: Ø68 mm
P22: 0.22 µm
20: 20"
T6F: 226 flat | Teflon-encapsulated FKM

Selectable options by segment

Wettability (appended to series code)

Code	Specification
L	Hydrophilic PVDF (handles high-surface-tension reagents directly)
B	Hydrophobic PVDF (aqueous service needs IPA pre-wetting)

e.g. JY-GPA1L-68-P22-20-T6F is the hydrophilic build. The flow curve is measured on the hydrophilic membrane; the hydrophobic one runs slightly higher ΔP at the same rating.

Outer diameter

Code	Specification
68	Ø68 mm

Retention rating

Code	Specification
P10	0.1 µm
P22	0.22 µm
P45	0.45 µm
P65	0.65 µm
M001	1 µm

Length

Code	Specification
10	10"
20	20"
30	30"
40	40"
50	50"
60	60"
70	70"

The dimension table covers 10" and 20"; 30" and longer (the catalogue goes to 70") are made to order with a separate lead time.

End cap

Code	Specification
DO	Double open end (DOE)
T2	222 / flat
F2	222 / fin
F6	226 / fin
T6	226 / flat

O-ring material

Code	Specification
F	FKM / Viton
S	Silicone
N	No O-ring

On this series both F and S are the Teflon-encapsulated versions (encapsulated FKM / silicone). The DOE build uses an all-PTFE flat gasket — select N.

Cleanliness & packaging options (trailing segment)

Code	Specification
E	Electronic grade
W	DI-water pre-wetted packing

Both codes can be combined, e.g. JY-GPA1-68-P22-20-T6F-EW. Omit for standard industrial grade, dry packed.

Not every combination is a stock item; uncommon combinations are made to order. Confirm with JIUNYUAN sales before ordering.

Dimensions

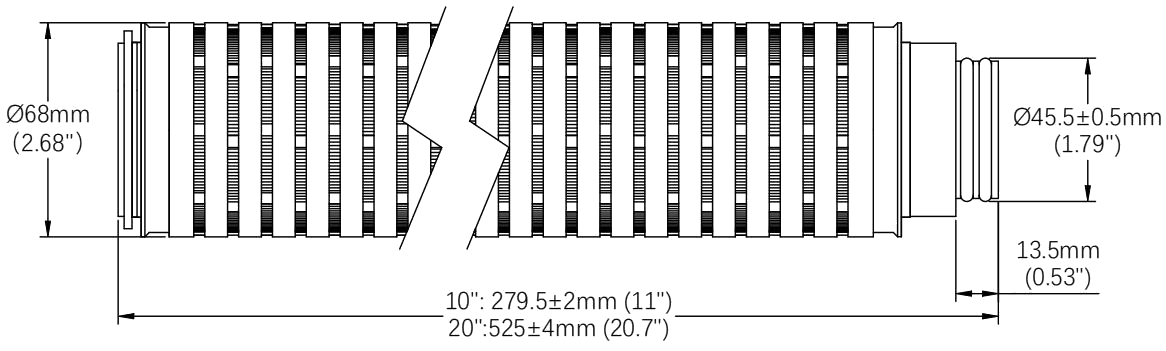

Single open end, 226 with finDrawing shows one representative size; the table below gives the exact diameter and length of each code.

Nominal length	Ø	A
10"	68 mm	279.5 ± 2 mm
20"	68 mm	525 ± 4 mm

Ø = nominal outer diameter 68 mm (2.68"); A = overall length with end caps. Adapter OD Ø45.5 ± 0.5 mm (1.79") with a 13.5 mm (0.53") fin section. 30" and 40" dimensions on request.

Flow vs. Differential Pressure

DI water at 20 °C (1 cP), single Ø68 mm 10" cartridge, hydrophilic membrane configuration, clean initial ΔP　Right axis shows the same values in psi.

The hydrophobic configuration shows slightly higher ΔP than the hydrophilic one at the same rating. For fluids other than water, multiply the pressure drop by the viscosity in centipoise; 1 bar = 100 kPa = 14.5 psi.

View data table

L/min / GPM	0.1 µm	0.22 µm	0.45 µm	1.0 µm
5.00 / 1.32	13.2	8.45	4.71	1.94
10.0 / 2.64	26.5	16.9	9.43	3.88
15.0 / 3.96	39.7	25.3	14.1	5.81
20.0 / 5.28	53.0	33.8	18.9	7.75
25.0 / 6.60	66.2	42.2	23.6	9.69
30.0 / 7.93	79.5	50.7	28.3	11.6
35.0 / 9.25	92.7	59.1	33.0	13.6
40.0 / 10.6	106	67.6	37.7	15.5

Details

Where it fits

PVDF pleated cartridges are used in chemical processing, ultrapure water and pharmaceutical production — particularly where acid, alkali or solvent attack and high cleanliness requirements arrive together. What defines the product is not any single number but a construction decision: membrane, support, cage, core and end caps are all the same fluoropolymer family.

Key characteristics

The all-PVDF build is sealed by high-temperature thermal welding, with no adhesives and no metal parts. The benefit is that the flow path contains no dissimilar-material interface: you do not end up with an intact membrane inside dissolved hardware, and there is no adhesive left as an extractables source.

The 120 °C ceiling is the highest of the polymer membrane cartridges in this general pleated family. Wettability is selectable: the hydrophilic configuration filters high-surface-tension reagents directly, while the hydrophobic one suits gas duty or applications that need water repellency. Lengths are available up to 70 inches.

Choosing between options

Three chemically resistant options, decided on temperature and rating:

Cartridge	Hardware	Max temp	Rating range
PVDF pleated (this)	All-PVDF	120 °C	0.1 – 1 µm
Hydrophilic PTFE pleated	PP	—	0.05 – 10 µm
PP pleated	PP (316L on some sizes)	—	0.1 – 10 µm

Operation & change-out

The hydrophilic configuration needs no pre-wetting. For aqueous service on the hydrophobic configuration, pre-wet with IPA and then displace with purified water. Cartridges ship dry or DI-water pre-wetted. Change out when ΔP reaches 3–5 times the clean initial value or 0.24 MPa (35 psi).

Rated to 5.2 bar at 25 °C, falling to 1.9 bar at 120 °C. Design hot service against the elevated-temperature rating rather than extrapolating from the ambient figure.

FAQ

Which chemicals can the PVDF cartridge handle?

PVDF offers excellent chemical compatibility and tolerates many acids, bases and solvents, making it suited to harsh chemical environments. Before use, verify compatibility against your specific chemistry, concentration and temperature to ensure stable long-term performance.

What ratings and lengths are offered?

The series provides ratings from 0.1μm to 1μm and lengths up to 70 inches. Longer elements add filtration area, lower pressure drop and extend service life, which helps high-flow chemical or ultrapure water systems.

Do the materials meet pharma cleanliness requirements?

All plastic components meet FDA 21 CFR and EU RoHS, and the cartridges are produced in Class 1,000 or 10,000 cleanrooms with no fiber release, suiting pharmaceutical processing, UPW and high-purity chemical applications.
